• ANSI
  • Wireless

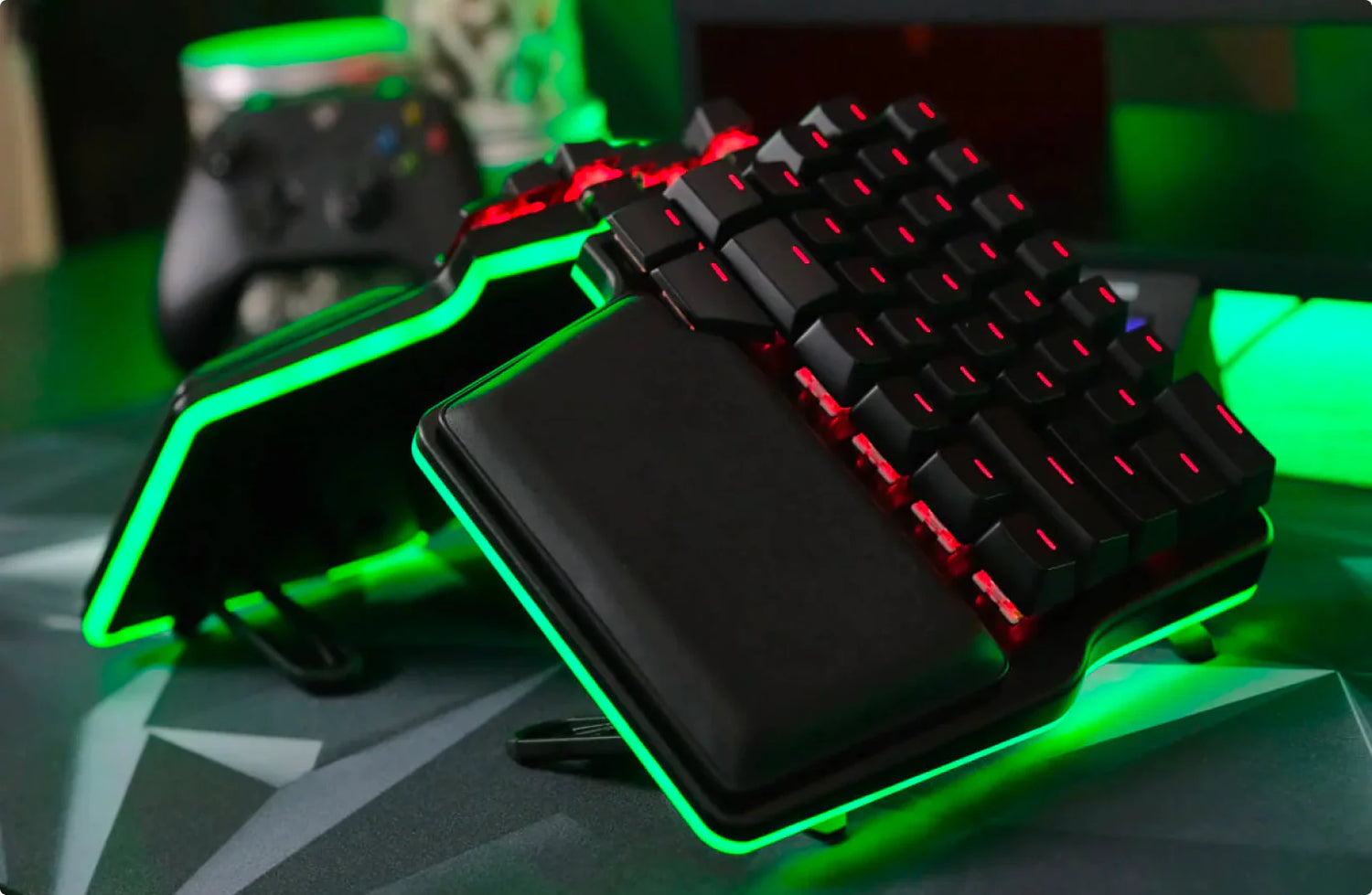

  • Built-in tenting
  • RGBW Underglow
  •
1 7
Shipping policies and taxes

Shipping included. Import fees may apply to countries outside of the EU
Need shopping help

Get advice from our experts A human, not a bot!
10% OFF PRE-SALE


Dygma Raise 2

$329.00
$329.00
$369.00
Tax included.

Loading product configurations

Color

Language

What's the difference between ANSI and ISO?

Compare
Free shipping Estimated shipping October 2024
Shipping policies and taxes

Shipping included. Import fees may apply to countries outside of the EU
Need shopping help

Get advice from our experts A human, not a bot!

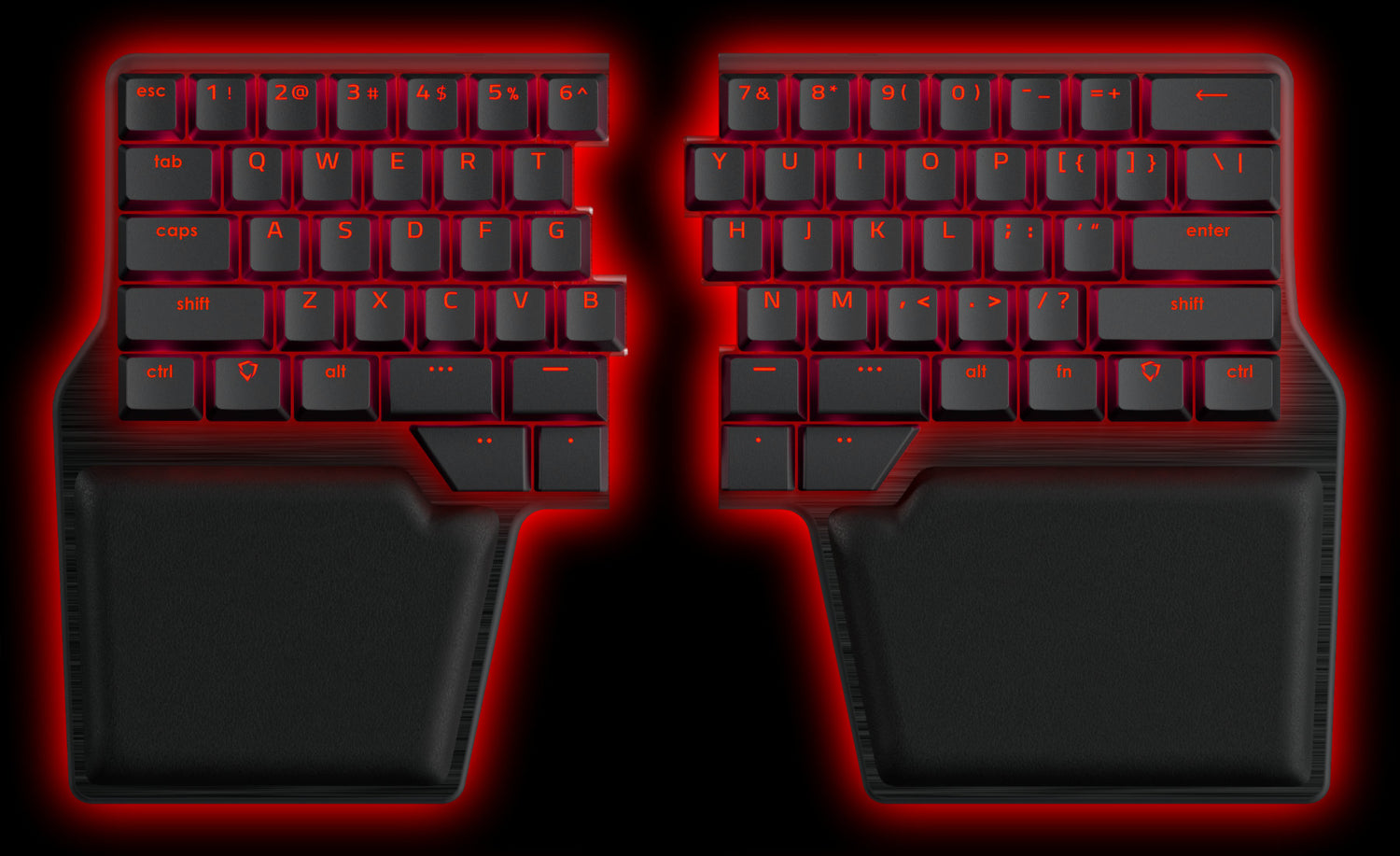

ANSI
COMPARATIVE

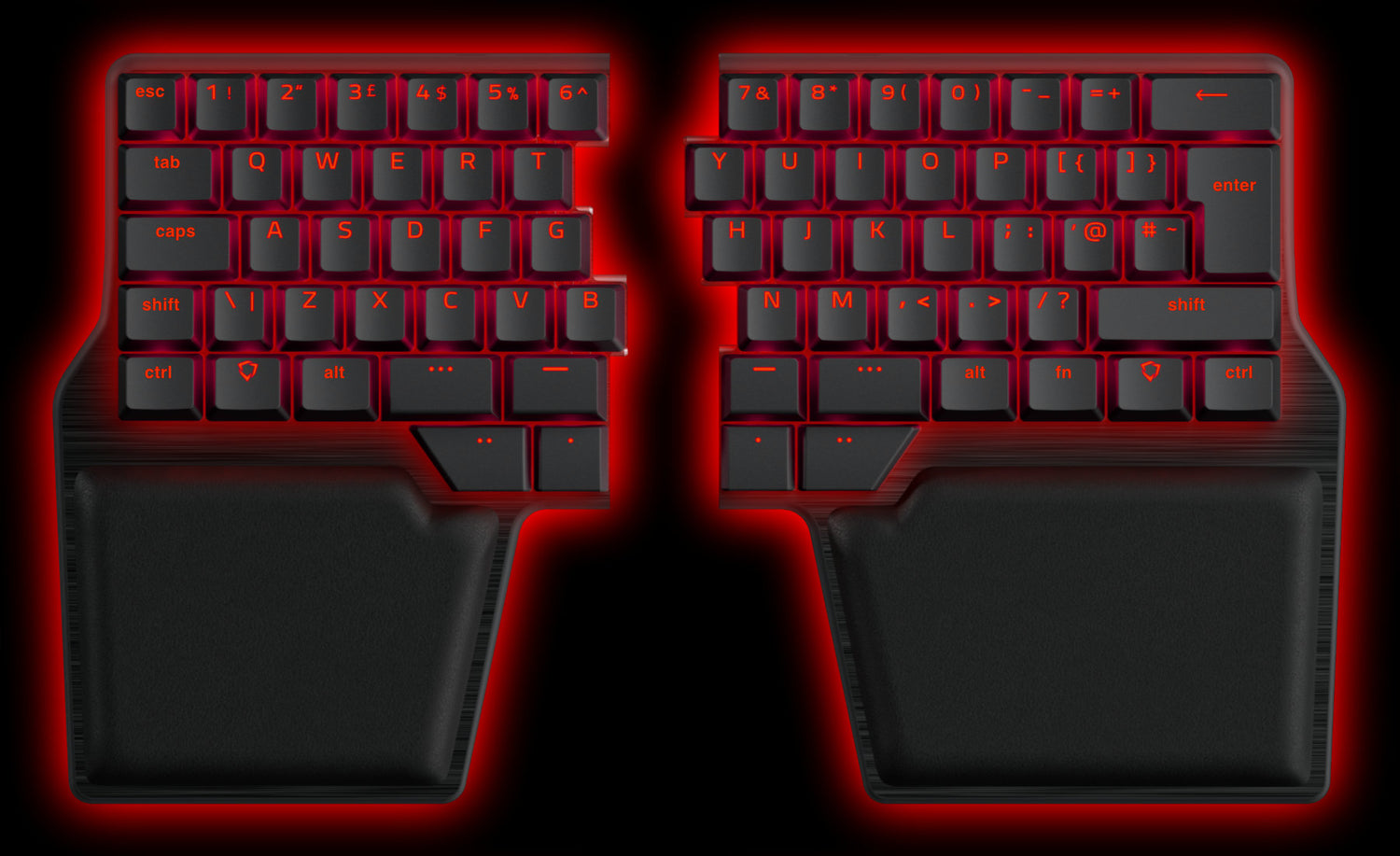

ISO

The ISO and ANSI layouts are two common keyboard configurations that differ primarily in the layout and size of certain keys. Here's a brief explanation of their differences:

  • Enter Key: One of the most noticeable distinctions is the shape and size of the Enter key. In the ISO layout, the Enter key is taller and narrower, resembling an upside-down "L" shape. In contrast, the ANSI layout features a shorter, wider Enter key, often shaped more like a rectangle.
  • Left Shift Key: Another key difference lies in the Left Shift key. In the ISO layout, the Left Shift key is smaller to accommodate an additional key to the left, usually the "" key. In the ANSI layout, the Left Shift key is larger and does not have an extra key to its left.
  • Backslash Key: The location of the Backslash ("") key varies between the two layouts. In the ISO layout, the Backslash key is usually placed to the left of the Enter key, sharing the same key as the "|". In the ANSI layout, the Backslash key is typically located above the Enter key.
Select English UK first
154 mm 178 mm 202mm
36 mm
36 mm
Switches
64 (ANSI version) / 65 (ISO version) mechanical switches and 4x low-profile mechanical switches.
Hot-swap Sockets
64 (ANSI version) / 65 (ISO Version) hot-swap sockets for Mx switches and 4x Kailh hot-swap sockets for Choc switches.
LEDs
68 (ANSI version) / 69 (ISO version) Customizable RGB LEDs on the keycaps and over 100 LEDs for the underglow.
Rollover
NKRO. No matter how many keys you want to smash at once, any keypress will be recorded.
Keycaps
PBT double-shot keycaps for English US and UK, and high-end laser-etched OEM profile keycaps for dash and non-English languages.
Connectivity
USB, Bluetooth, Low-latency RF.
Compatibility
Windows, macOS, iOS, Linux & Android
Key plate
Brushed annodized aluminum
Microcontrollers
2x RP2040 (1 on each keycanner), 2x Nordic nRF52820 (1 on each side) and 1 Nordic nRF52833 (on the neuron)
Dimensions
332 mm x 202 mm x 36 mm
Weight
1kg approximately


What's included in the box 10

Dygma Raise 2 Keyboard

Dygma Raise 2 Keyboard

Valued at $29
Dygma Defy Keyboard
1x Keycap and switch puller
140x O-rings (Thick & Thin)
8x Test switches
1x Microfiber cloth
1x Crap remover

Enhancement kit

Valued at $59
Travel Case - Open Travel Case - Open
Travel Case - Loading Travel Case - Black Travel Case - Gray

Travel Case

Neuron Neuron Neuron

Neuron

Valued at $35
Loading Palm Pads Set of Palm Pads Set of Palm Pads

Set of Palm Pads

Loading Cables Dygma Raise 2 Cables Dygma Raise 2 Cables
1x 1.5m USB-C to USB-C Cable
1x 50cm USB-C to USB-C Cable
2x 30cm USB-C to USB-C Cable
1x USB-C to USB-A Adaptor

Cables

FAQs 15

The manufacturing process is already underway and we expect to ship the keyboards during October 2024.
All of them 😅
Yes, you can change your order at any time before the keyboard ships.
Once we reach the different goals for the limited edition colors, you'll be able to change your order to upgrade to the new color. Just email contact@dygma.com and we'll do that for you.
You can cancel your order and get a full refund at any time before the keyboard ships.
You can try the keyboard for 30 days and return it if you don't like it (although we know you will 😊). You'll only have to pay the shipping costs back to us.
Up to 5 devices, and you’ll be able to switch between them easily.
Yes. Per-key RGBW comes as standard, even if you don't select the underglow add-on. The underglow is the RGBW strip that surrounds the base of the keyboard.
Yes, the wireless Dygma Raise 2 will also work with cabes.
Each side has a 2370 mAh battery, so it's 4740 mAh total. With the current firmware, the Raise 2 lasts up to 20 hours with full LED brightness. With brightness at 30%, you can expect a week, and without LEDs, a bit over that. However, we are working to vastly improve that with future firmware updates. You can also configure different brightness settings for the LED lights, so you can adjust battery consumption.
In Bluetooth mode, the range is about 10 meters. In RF is way larger, more than 20, but our facilities are not large enough to test it much further 😅
The base of the keyboard is quite different depending on your configuration, so it's not possible to install add-ons afterward.
Yes. The Dygma Raise 2 is hot-swappable, meaning you can use any 3-pin or 5-pin switch with an MX stem (which are most of them).
Yes, you can. The software is only required to make changes to the layout. Once those are made, they are stored in the Neuron, that way you can enjoy them in any computer you use.
Yes, our configurator software is compatible with macOS, Linux and even Windows.
Yes, you can. Just make sure that they are MX stem compatible (most of them are). However, note that the Dygma Raise 2 thumbkeys are custom-made, so you won't find custom keycaps for those.
The palm pads are made of silicone with a vegan leather cover. They are held in place with magnets, so it's safe to remove and clean them with water.
