Mechanical Switches

Regular price: $55.20
Regular price
Sale price: $55.20; ~~$69.00~~
Unit price: per

Tax included.

Product variants

Shipping and taxes | Ask about this product

The Cherry MX Brown switch is one of the most popular switches on the market for overall purposes. This switch is quiet with tactile feedback, making it perfect for accurate typing. 65 Cherry MX Brown and 4 Kailh Low Profile Brown switches included.

Tactile

Sound intensity
55 gF

Grams of force
2.0 mm

Trigger travel
4.0 mm

Total travel
50 M

Million cycles

All there’s to know about switches

Mechanical keyboards are defined by their mechanical switches.

Choosing the right switch is crucial to your overall experience, as it depends on how and what the keyboard will be used for.

Fortunately, the Dygma Raise is a hot-swappable keyboard, so you can easily change your switches whenever you feel like it.

Continue reading to learn everything you need to know about mechanical switches.

Components of a mechanical Switch

Keycap

The keycap isn’t part of the mechanical switch but it is partially responsible for the noise.

Stem

The shape of the stem varies the actuation and travel distance of the switch. It creates the keystroke feel and determines the switch type.

Coil Spring

Its resistance determines the amount of pressure needed to actuate the key. It also guides the switch to slide back to its position.

Upper housing

This part protects and guides the stem. It is also the part that the keycap hits when you press it.

Base housing

This is where the upper housing is mounted. This is the piece that attaches and clips to the PCB.

How to change mechanical switches

Changing the switches on a hot-swappable keyboard like the Dygma Raise is quite easy. You just need a keycap and switch remover tool (it comes with your Raise) and little bit of patience.

Load video: How to remove and replace mechanical switches on a Dygma Raise keyboard

Things to remember when choosing your switches

There are mainly two things you need to consider when choosing your switches: the type of switch and the force needed to activate it. Depending on those factors, you’ll get a different sound and tactile feedback when you press the key.

Types of switches

Linear
Linear switches have a smooth keypress with no bump when you press them. These switches are usually quite silent and fast.
Tactile
Tactile switches have a light bump when you press them, giving you a light feedback while you type. They are also silent.
Clicky
Clicky switches emit a very distinctive (and loud) noise when they are pressed. They also give a tactile response.

Characteristics of a mechanical switch

Besides the keystroke feel, there are 5 technical characteristics of a switch.

Depending on your typing technique and the general purpose of your keyboard, you would need certain values for each characteristic.

Operation Force
The force needed to activate the switch is usually measured in grams of pressure or centinewton (cN). You can consider pressure less or equal to 50 cN as light, and the rest as medium or high.
Activation Point
It is the point where a keypress is recognized by the keyboard. This is measured in millimeters. It is also known as Actuation Point or Operating Position.
Total Travel Distance
It’s the distance your keycap travels until it hits the upper housing of the switch. It’s basically the distance until you bottom out. This is also measured in millimeters.
Tactile Position
Tactile position is where you feel the bump on tactile and clicky switches. On linear switches, there’s no tactile position.
Reset Point
Reset position is the distance at which the key is deactivated when released.

Time to choose your switches

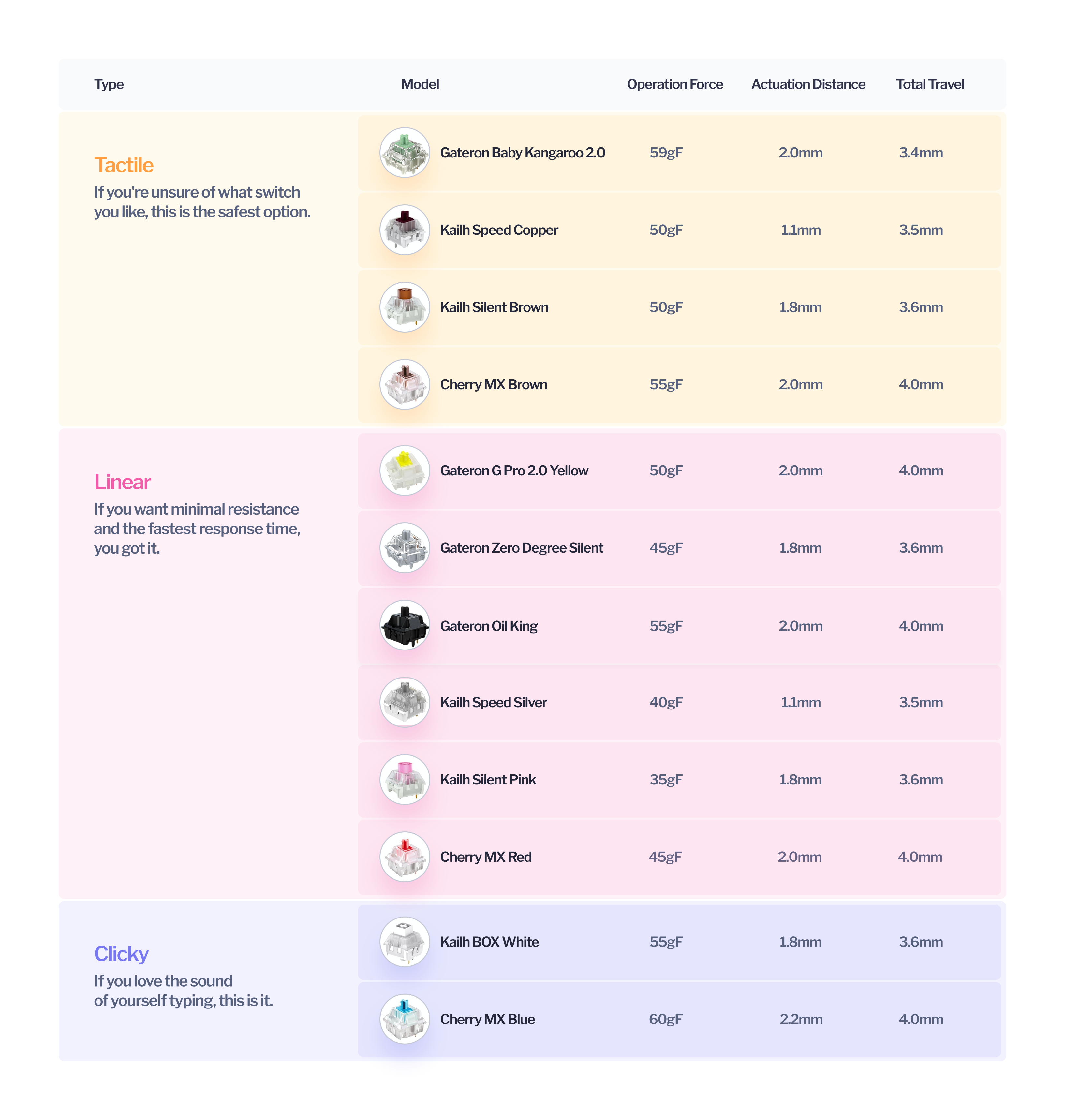

Below is a list of the switches we offer with the Dygma Raise, along with their different characteristics. They are grouped in types: linear, tactile, and clicky.

Still not sure which switch to choose?

If you have doubts deciding which switch to choose, ask us! We will happily help you decide which switch is best for you.

Remember, when you order your Raise, it comes with an enhancement kit that includes the 8 different switches we offer. That way you’ll have the option to try all the switches and change them if you want to in the future.
